Urethane attachment

Attach urethane to the position shown in the figure using the projection as a reference.

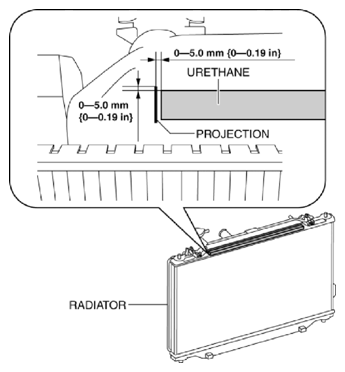

Fig 1: Attaching Urethane To Position Using Projection Reference

Courtesy of MAZDA MOTORS CORP.
