Exhaust System Insulator Removal/Installation

Remove the exhaust system insulator in the order shown in the figure.
Install in the reverse order of removal.

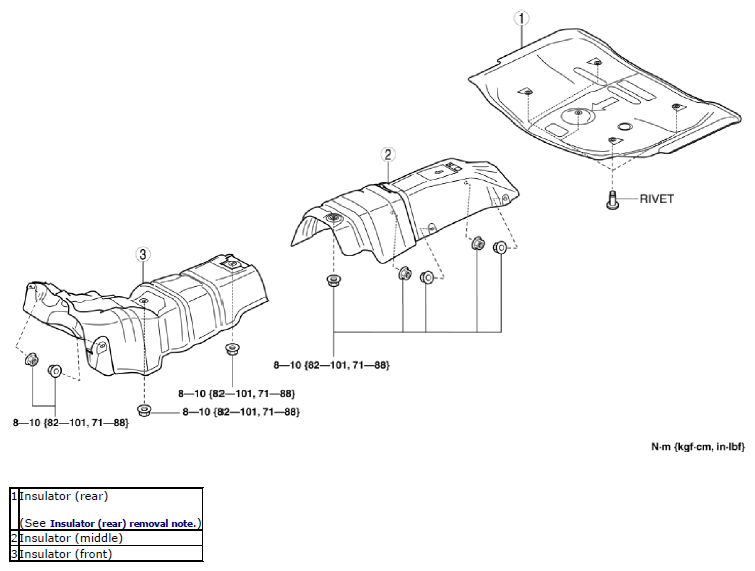

Fig 1: Identifying Exhaust System Insulator Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
