Fresh-air Duct Removal Note

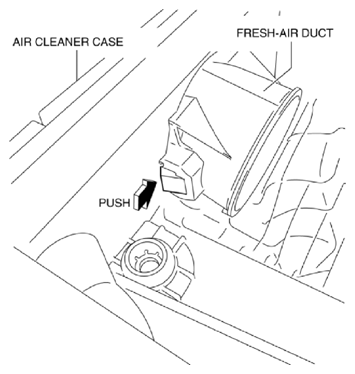

  1. Pull out the fresh-air duct while pressing the tab shown in the figure.
Fig 1: Pulling Out Fresh-Air Duct
G10985356Courtesy of MAZDA MOTORS CORP.
