Fuel pump control module (diagnostic) signal

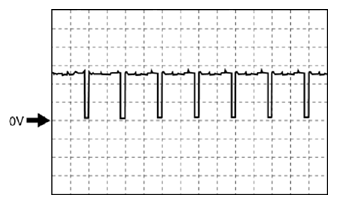

Fig 1: Fuel Pump Control Module (Diagnostic) Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AM(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
