PCM Cover Installation Note

Insert the PCM cover end into area A shown in the figure.

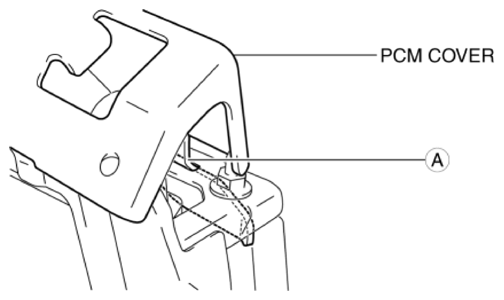

Fig 1: Inserting PCM Cover End Into Area A
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the two bolts, then completely tighten them.
