Bolt Installation Note
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the exposed area of the piston.

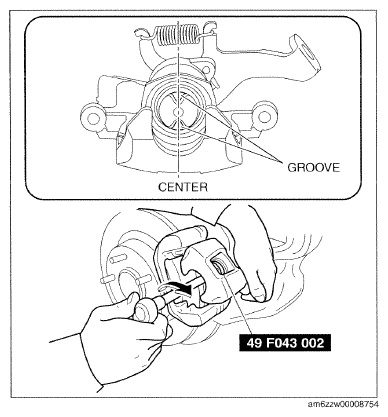

- Rotate the piston clockwise slowly using the SST and push the piston completely until the piston grooves are in the position shown in the figure.
- Return the rear caliper to the original position and install the rear caliper installation bolt.
