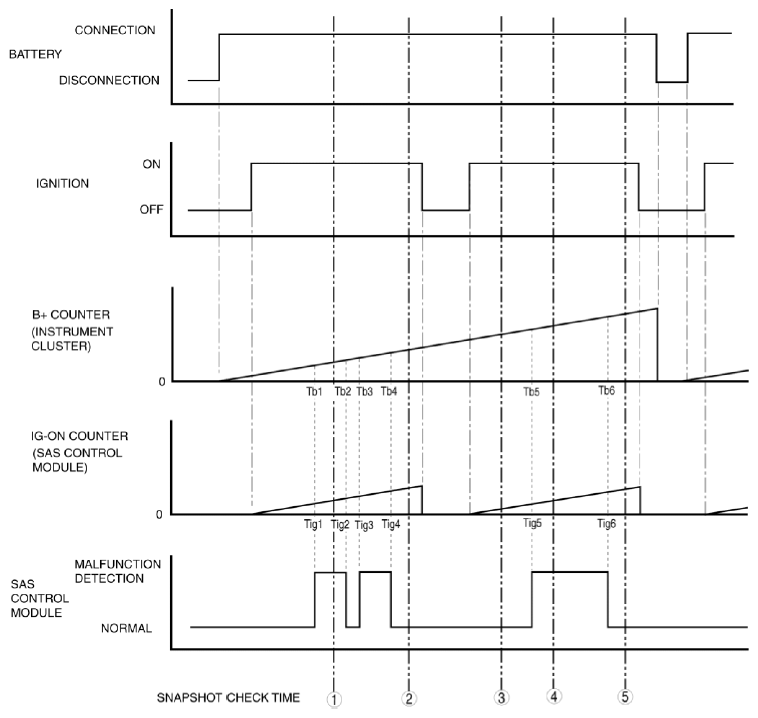

Snapshot counter pattern
Courtesy of MAZDA MOTORS CORP.
| Snapshot check time |
FAULT_CNT |
FIRST_DET_IG |
LAST_CLR |
LAST_CLR_IG |
LAST_DET |
LAST_DET_IG |
TOTAL_TIME |
| Number of malfunction detections |
Time when initial malfunction occurs (IG-ON counter) |
Repair time for last malfunction (B+ counter) |
Repair time for last malfunction (IG-ON counter) |
Time when last malfunction occurs (B+ counter) |
Time when last malfunction occurs (IG-ON counter) |
Time when first malfunction occurs (B+ counter) |
| 1 |
1 |
Tig1 |
- |
- |
Tb1 |
Tig1 |
Tb1 |
| 2 |
2 |
Tig1 |
Tb4 |
Tig4 |
Tb3 |
Tig3 |
Tb1 |
| 3 |
2 |
Tig1 |
Tb4 |
Tig4 |
Tb3 |
Tig3 |
Tb1 |
| 4 |
3 |
Tig1 |
Tb4 |
Tig4 |
Tb5 |
Tig5 |
Tb1 |
| 5 |
3 |
Tig1 |
Tb6 |
Tig6 |
Tb5 |
Tig5 |
Tb1 |
