Front Lower Arm Removal/Installation: Notes

1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

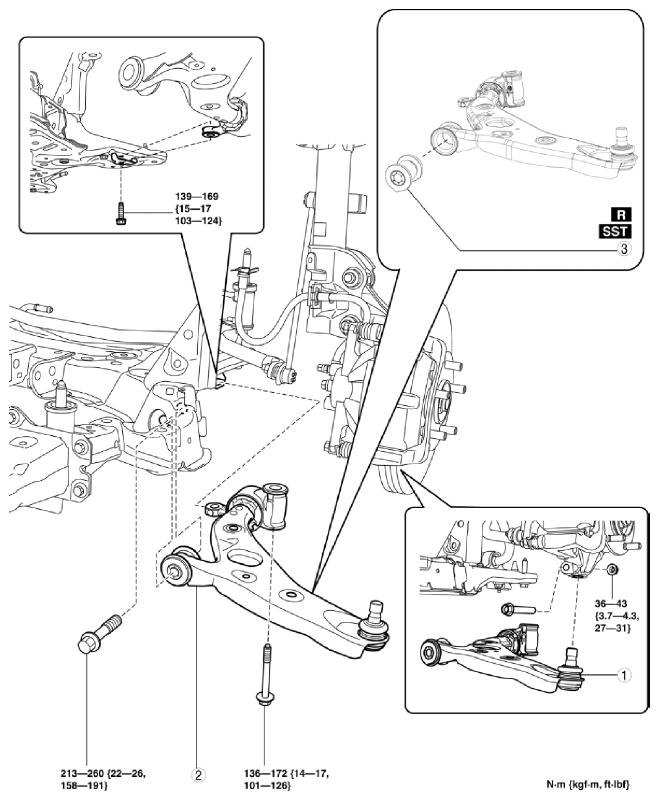

Fig 1: Front Lower Arm Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front lower arm ball joint
2	Front lower arm
3	Front lower arm bushing (See Front Lower Arm Bushing Removal Note .) (See Front Lower Arm Bushing Installation Note .)
