Mounting Rubber Installation Note

  1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the following figure.

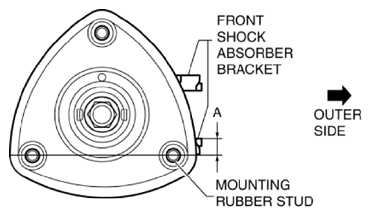

    Fig 1: Identifying Mounting Rubber Stud And Front Shock Absorber Bracket Position
    G10985714Courtesy of MAZDA MOTORS CORP.
    • A: 0°°5°
