Front Shock Absorber And Coil Spring Removal/Installation: Notes

CAUTION:

• Performing the following procedures without first removing the front ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the front ABS wheel-speed sensor wiring harness (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.

1. Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)

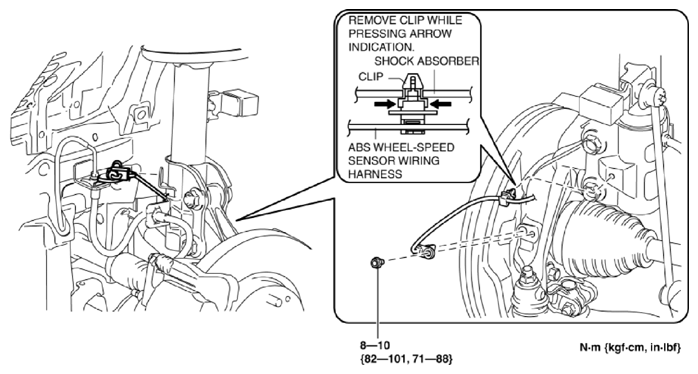

   Fig 1: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness To Steering Knuckle

   Courtesy of MAZDA MOTORS CORP.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

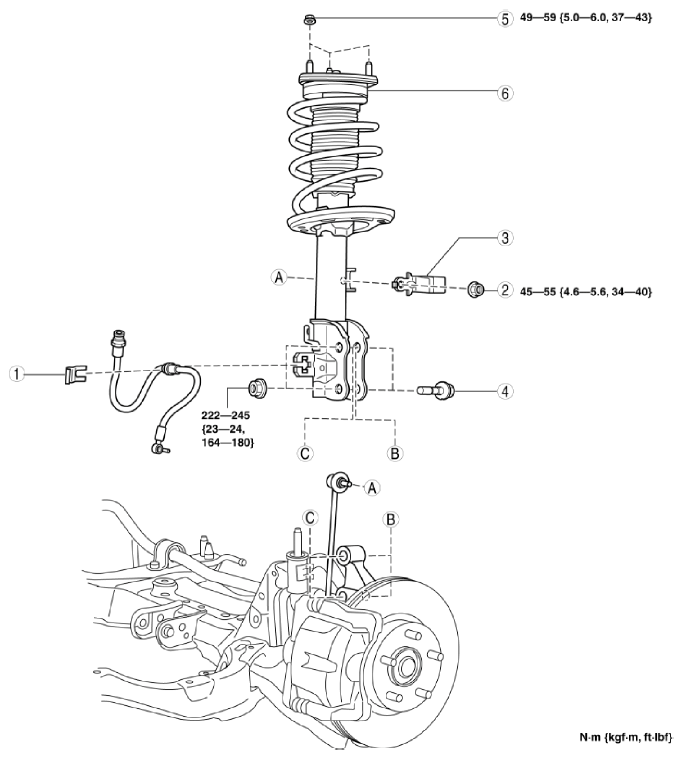

Fig 2: Front Shock Absorber And Coil Spring Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front brake hose clip (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION .)
2	Front stabilizer control link upper nut (See FRONT STABILIZER REMOVAL/INSTALLATION .)
3	Dynamic damper
4	Front shock absorber lower bolt (See Front Shock Absorber Lower Bolt Installation Note .)
5	Front shock absorber upper nut
6	Front shock absorber and coil spring
