Trunk Compartment Light Bulb Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. While pressing the lens in the direction of the arrows (1) shown in the figure, move the lens in the direction of the arrow (2) shown in the figure to detach the lens tabs from the body panel.

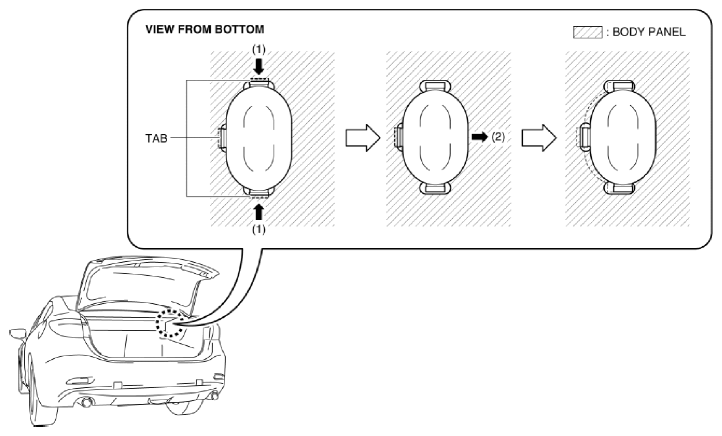

    Fig 1: Detaching Lens Tabs From Body Panel
    G10988053Courtesy of MAZDA MOTORS CORP.
  3. Remove the lens.

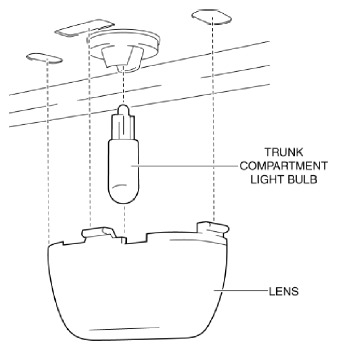

    Fig 2: Removing Lens
    G10988054Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk compartment light bulb.
  5. Install in the reverse order of removal.
