Connector Installation Note

Connect the connector in the order shown in the figure.

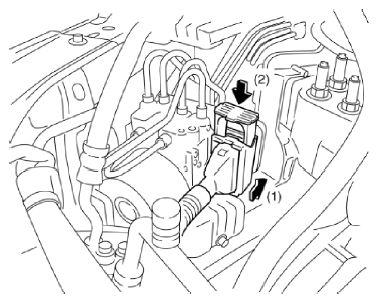

Fig 1: Connecting Brake Pipe Connector
Courtesy of MAZDA MOTORS CORP.
After connecting the connector, verify that the connector is completely locked.
