No. 1 Engine Mount: Notes

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

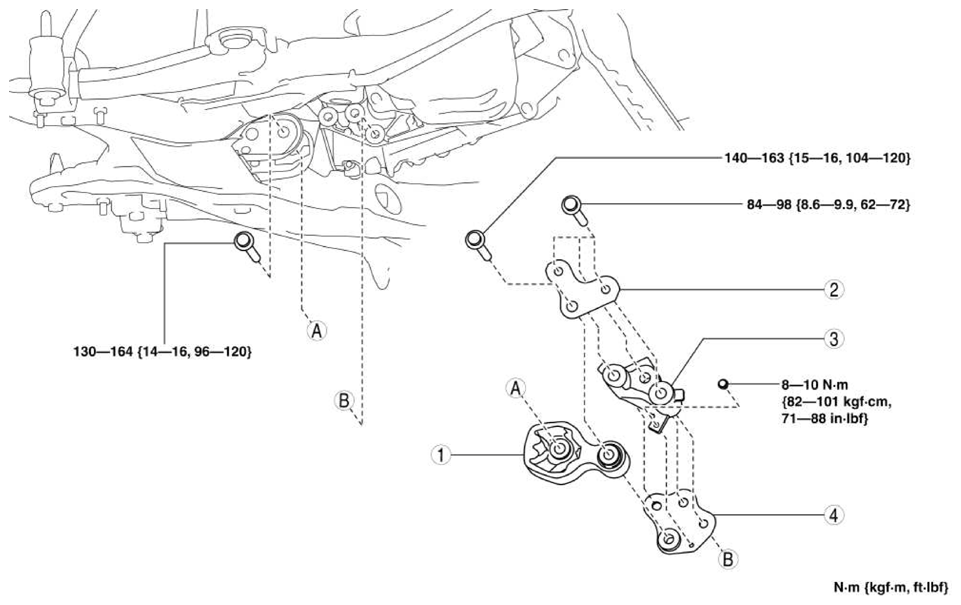

Fig 1: Engine Mount Related Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount rubber (See No. 1 engine mount rubber removal note .) (See No. 1 engine mount installation note .)
2	Bracket plate (No. 1) (See No. 1 engine mount installation note .)
3	No. 1 engine mount bracket (See No. 1 engine mount installation note .)
4	Bracket plate (No. 2) (See No. 1 engine mount installation note .)
