Ventilation Hose Installation Note

1. Install the ventilation hose as shown in the figure.

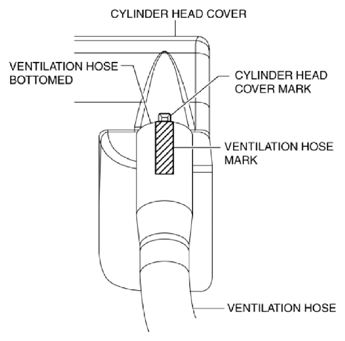

Fig 1: Installing Ventilation Hose (Cylinder Head Cover Side)

Courtesy of MAZDA MOTORS CORP.

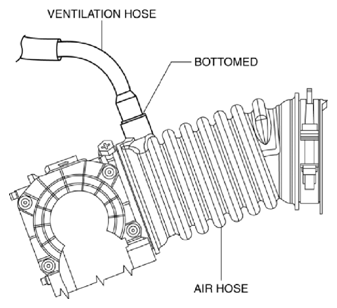

Fig 2: Installing Ventilation Hose (Air Hose Side)

Courtesy of MAZDA MOTORS CORP.
