On-Board Diagnostic - Introduction
›
Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

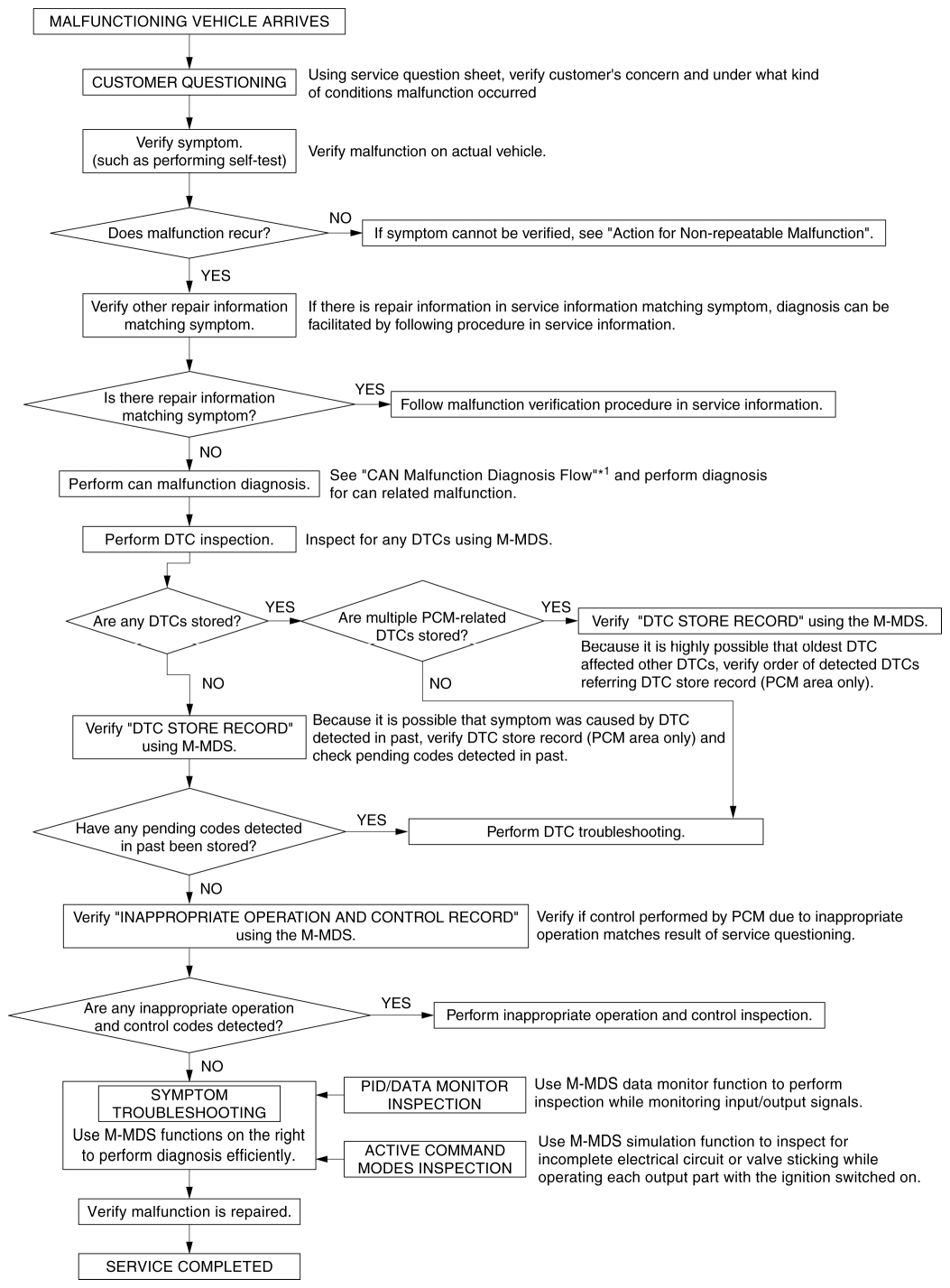

Fig 1: Vehicle Malfunction Troubleshooting Flow Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
