Clip Replacement Note

  1. Remove the rubber boot.

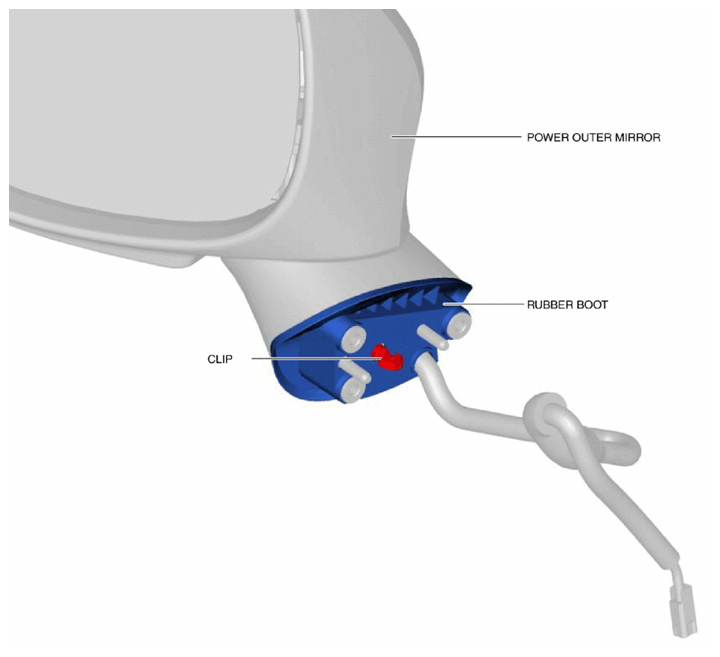

    Fig 1: Identifying Power Outer Mirror, Rubber Boot And Clip
    G10914192Courtesy of MAZDA MOTORS CORP.
  2. Remove the screw.

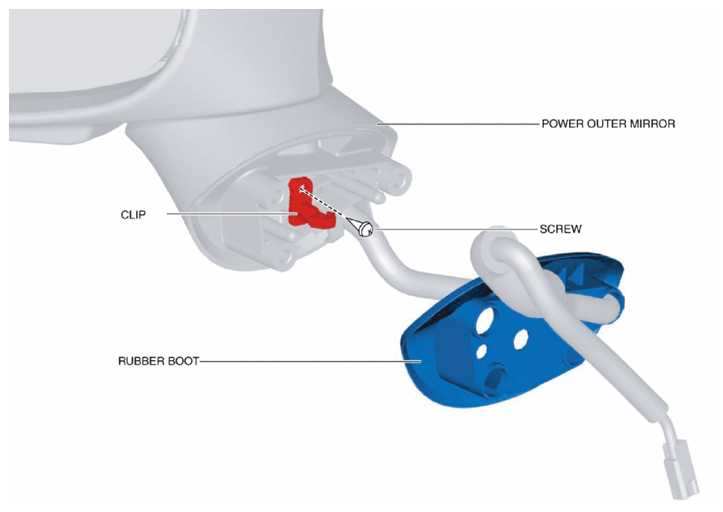

    Fig 2: Identifying Power Outer Mirror, Rubber Boot, Screw And Clip
    G10914193Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Install in the reverse order of removal.
