Symptom Troubleshooting - Power Window Systems
›
Power Window System Wiring Diagram [Power Window System]
Power Window System Wiring Diagram [Power Window System]

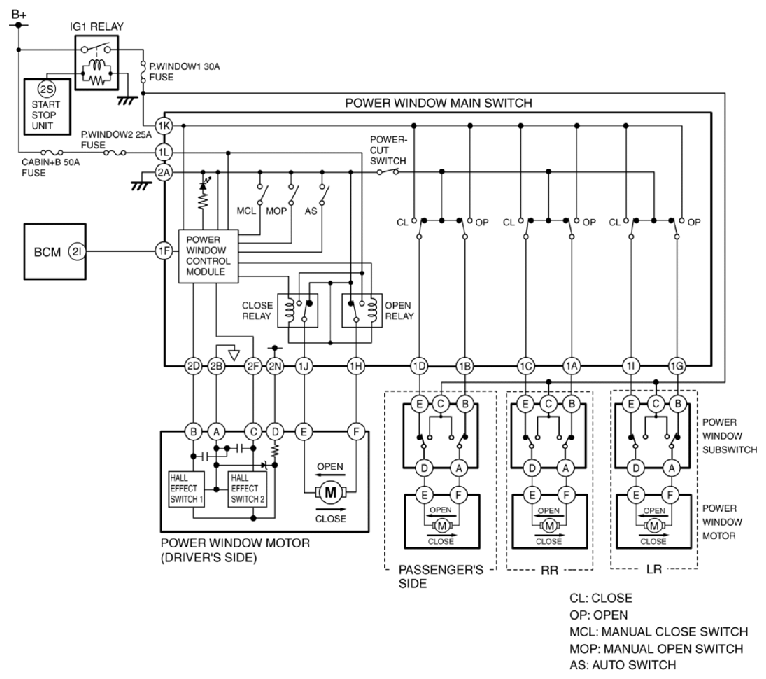

Fig 1: Power Window System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
