Active Driving Display Installation Note

CAUTION:

• Do not force to pull out/insert the wiring harness end without pushing the tabs, or the wiring harness end hook (s) will be damaged. If the hooks are damaged, it will cause loose and/or oblique fit of the wiring harness end leading to the ADD being inoperative.

Fig 1: Caution For Pushing Tabs

Courtesy of MAZDA MOTORS CORP.

NOTE:

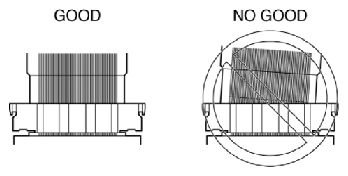

• Verify that the wiring harness end is inserted straight and securely locked in the position as shown in figure.

Fig 2: Caution For Securing Wiring Harness End

Courtesy of MAZDA MOTORS CORP.
