No-Load Test
- Verify that the battery is fully charged. (Refer to BATTERY INSPECTION .)

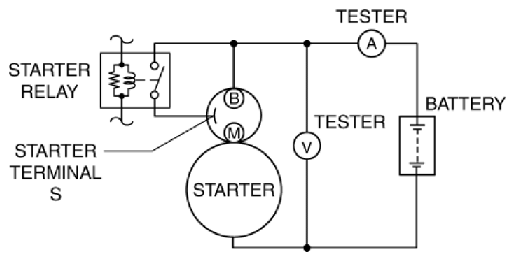

- Connect the starter, battery, and a tester as shown in the graphic.
- Operate the starter and verify that it rotates smoothly.
- If the starter does not rotate smoothly, inspect the starter unit.
- Measure the voltage and current while the starter is operating.
- If not within specification, replace the starter. (Refer to STARTER REMOVAL/INSTALLATION .)
Starter No-Load Test Voltage
- 11 V
Starter No-Load Test Current
- 95 A or less
- If not within specification, replace the starter. (Refer to STARTER REMOVAL/INSTALLATION .)
