Oil Pump Installation Note

Install the oil pump using the following procedure:
1. Temporarily tighten the Three Bolts shown in the graphic.

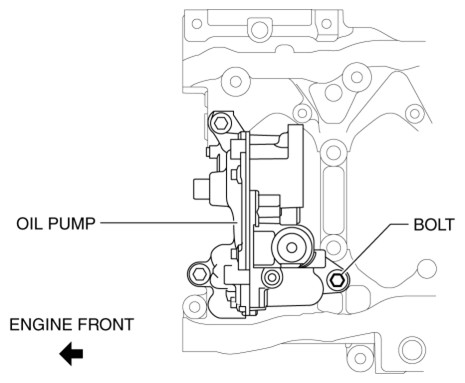

  Fig 1: Oil Pump Bolts (1 Of 3)
  Courtesy of MAZDA MOTORS CORP.
2. Tighten the Two Bolts shown in the graphic to the specified torque.

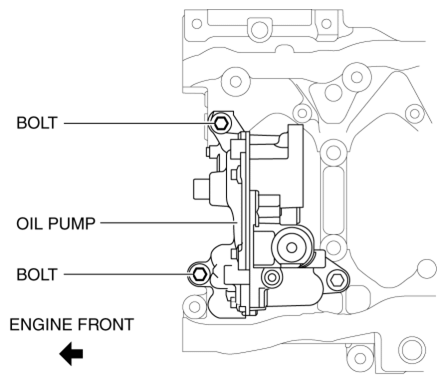

  Fig 2: Oil Pump Bolts (2 Of 3)
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The tightening order for the two bolts is optional.
  Tightening Torque
  - 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
3. Finally, tighten the bolt shown in the graphic to the specified torque.

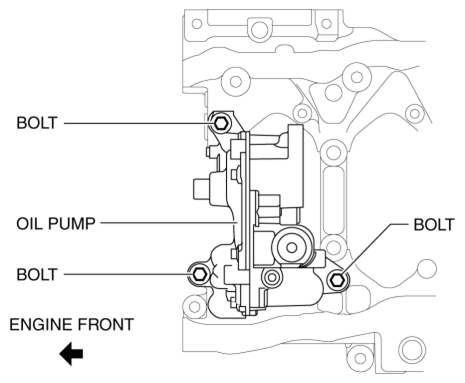

  Fig 3: Oil Pump Bolts (3 Of 3)
  Courtesy of MAZDA MOTORS CORP.

  Tightening Torque
  - 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
