Vacuum Hose Installation Note

  1. Install the vacuum hose as shown in the graphic.

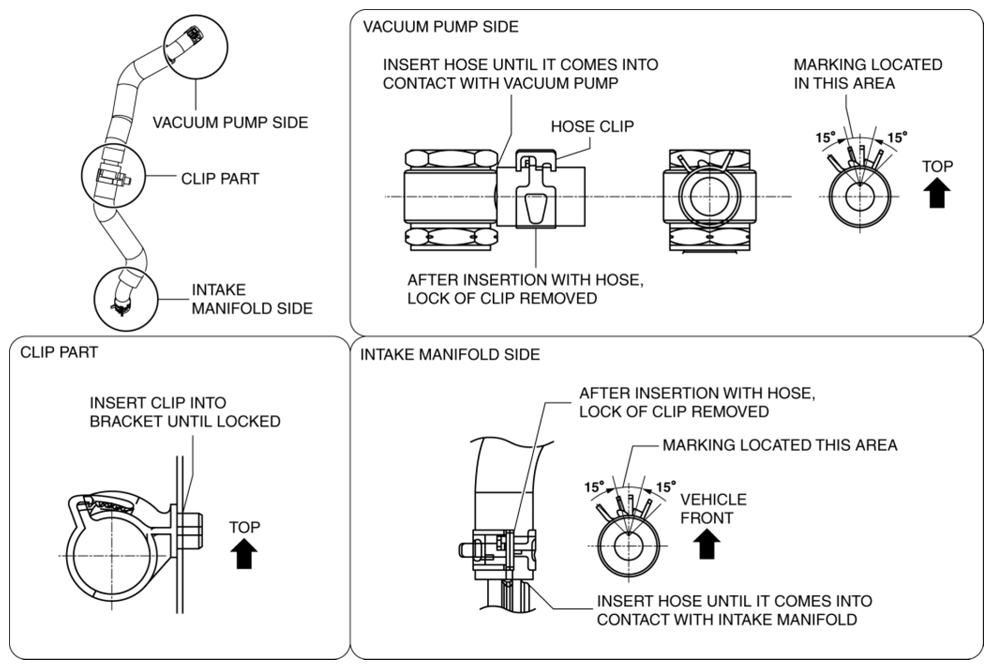

    Fig 1: Installing Vacuum Hose
    G10900599Courtesy of MAZDA MOTORS CORP.
