Ventilation Hose Installation Note

Install the ventilation hose as shown in the graphic.
Cylinder head cover side

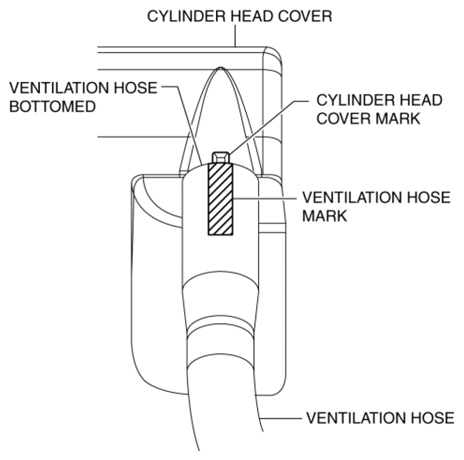

Fig 1: Installing Ventilation Hose (Cylinder Head Cover Side)
Courtesy of MAZDA MOTORS CORP.

Air hose side

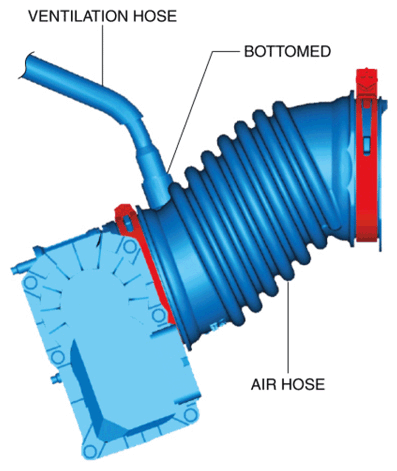

Fig 2: Installing Ventilation Hose (Air Hose Side)
Courtesy of MAZDA MOTORS CORP.
