HO2S heater control signal

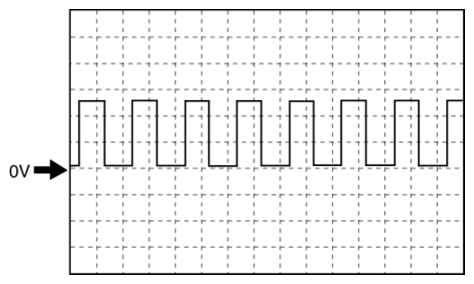

Fig 1: HO2S Heater Control Signal Voltage Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2C(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

• Idle (immediately after starting engine)
