Transfer Oil Inspection

Park the vehicle on level ground.
Remove the oil level plug and with the washer.

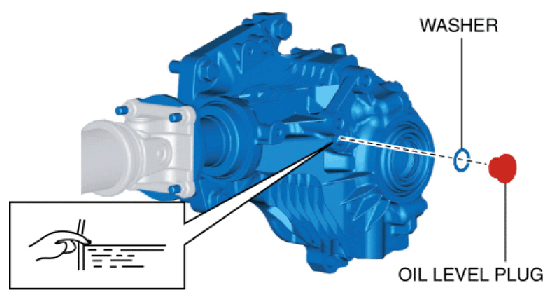

Fig 1: Oil Level Plug And Washer (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Verify that the oil is near the brim of the plug hole.
- If the oil level is low, add the specified amount and type of oil through the oil level plug hole.
  Transfer Oil Type
- MAZDA LONG LIFE HYPOID GEAR OIL SG1
Tighten the oil level plug with a new washer.

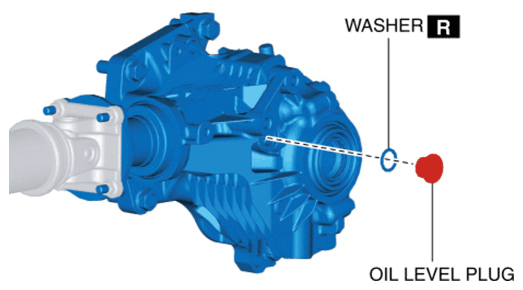

Fig 2: Oil Level Plug And Washer (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

Tightening Torque
- 40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}
