Generator Removal Note

  1. Remove the generator from the upper side of the engine compartment.

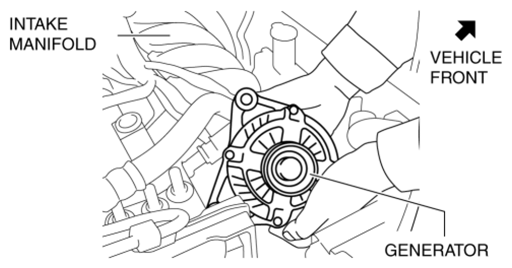

Fig 1: Removing Generator From Engine Compartment Upper Side
G10969002Courtesy of MAZDA MOTORS CORP.
