CX-3 Touring, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (Service Information)
›
Control System Diagram
Control System Diagram

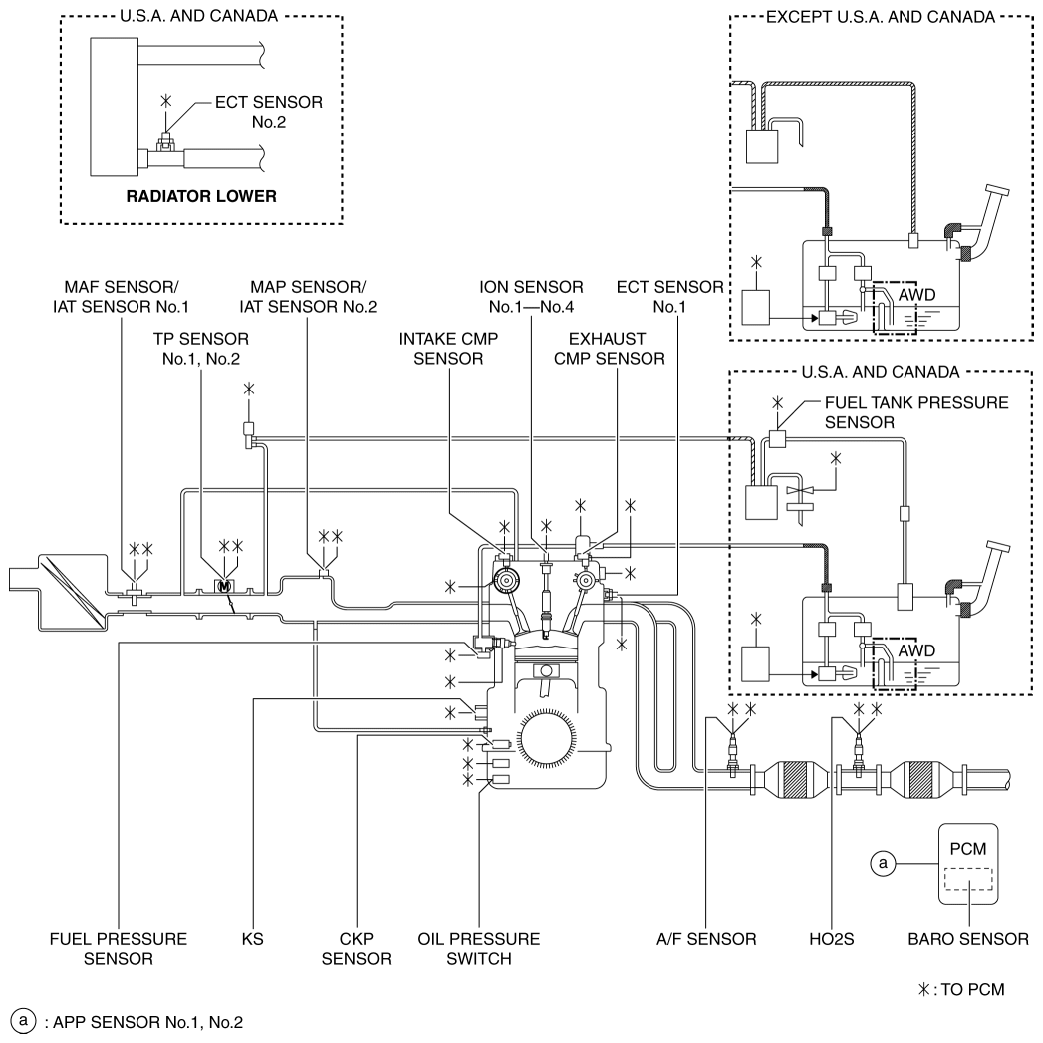

Fig 1: Engine Control System Schematic Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
