Air Bag System Location Index [Two-Step Deployment Control System]

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

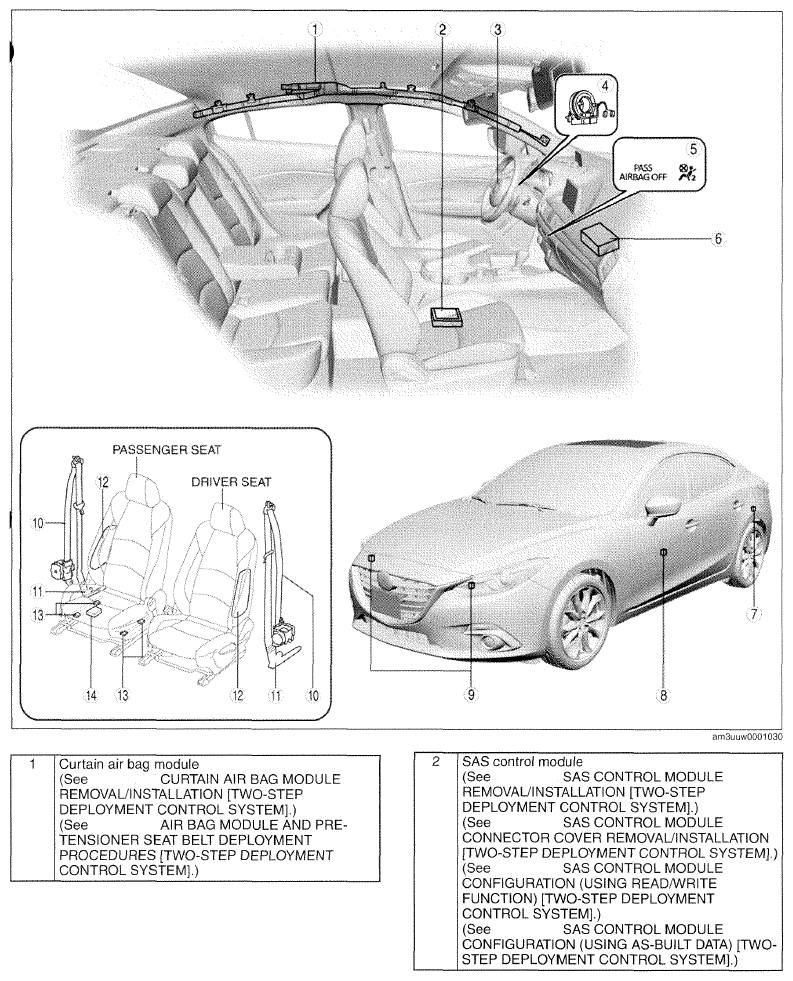

Fig 1: Air Bag System Component Locations (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

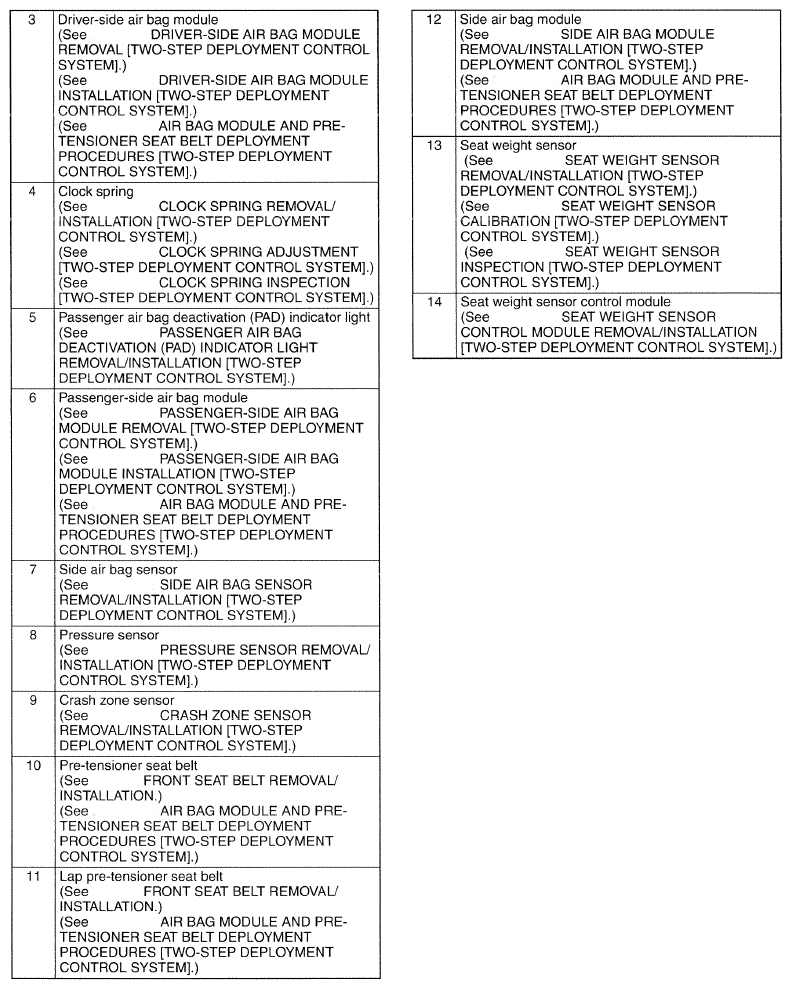

Fig 2: Air Bag System Component Locations (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
