CKP signal

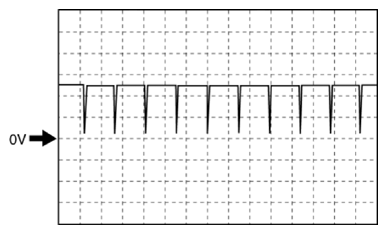

Fig 1: CKP Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AD(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)
