AWD Control Module Removal Note

  1. Slide the AWD control module toward the connector, and remove it.

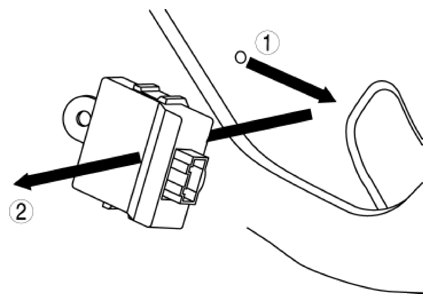

    Fig 1: Removing AWD Control Module
    G10936755Courtesy of MAZDA MOTORS CORP.
