Center Accessory Socket Inspection

1. Remove the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
2. Connect the tester probe to the position shown in the figure and verify that there is continuity.

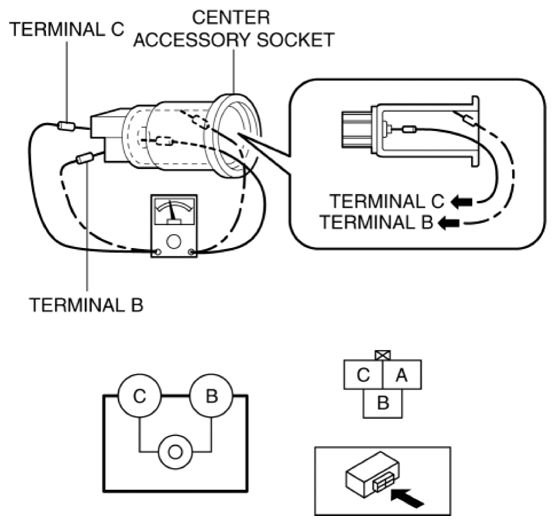

   Fig 1: Checking Continuity Between Center Accessory Socket Terminals

   Courtesy of MAZDA MOTORS CORP.
   • If it cannot be verified, replace the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)

2016 - CX-5 - Body and Accessories
