Power Outer Mirror Switch Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
3. Verify that the continuity between the power outer mirror switch terminals is as indicated in the chart.

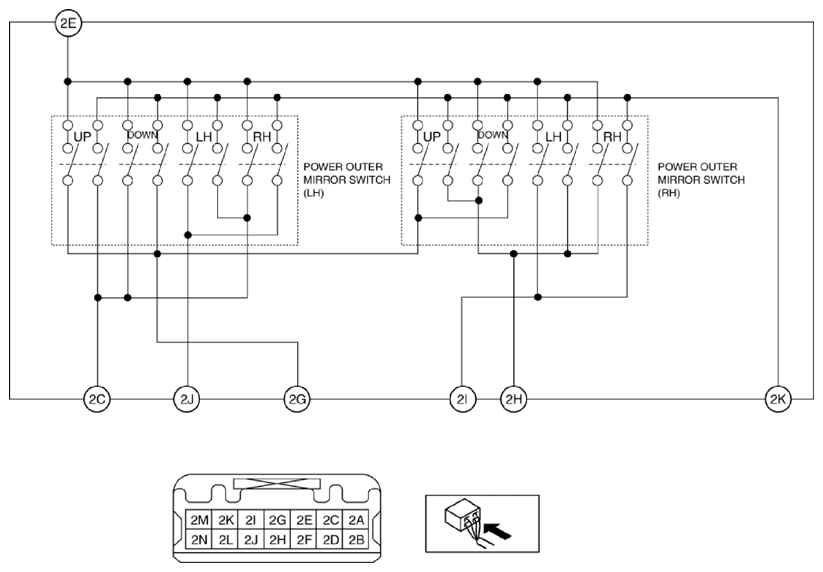

Fig 1: Power Outer Mirror Switch Wiring Diagram

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the chart, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)

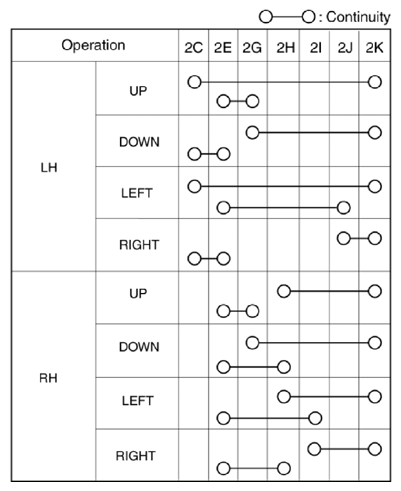

Fig 2: Power Outer Mirror Switch Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.
