Power Window SUBSWITCH Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
3. Verify that the continuity between the power window subswitch terminals is as indicated in the chart .

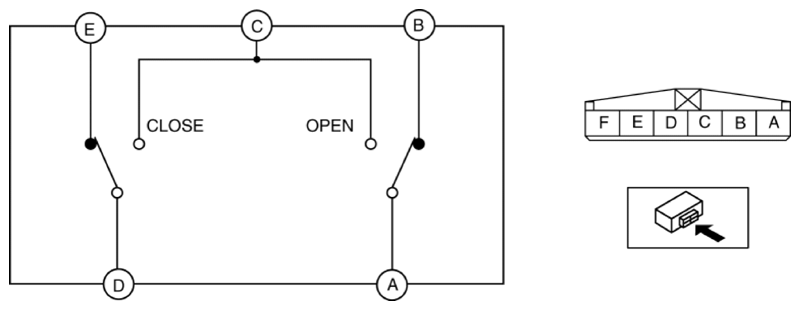

Fig 1: Power Window Subswitch Circuit Diagram

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the chart, replace the power window subswitch.

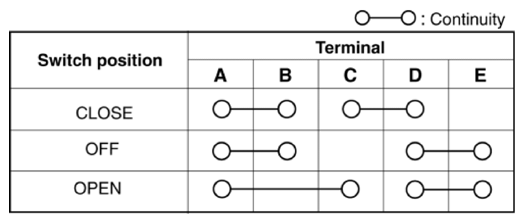

Fig 2: Power Window Subswitch Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.
