Brake Pipe Installation Note

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

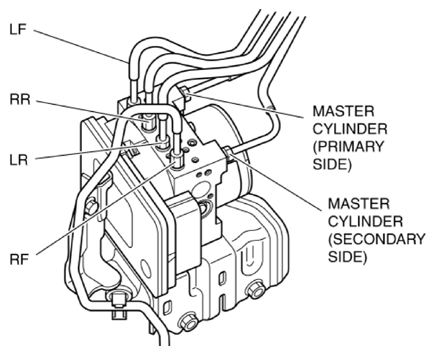

Fig 1: Identifying Master Cylinder Brake Pipes (Primary And Secondary Sides)
Courtesy of MAZDA MOTORS CORP.
Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
