DSC System Wiring Diagram

Type A

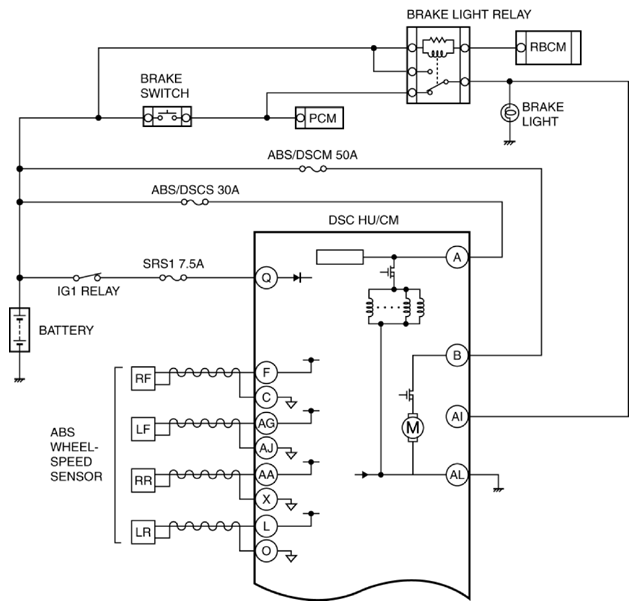

Fig 1: DSC System Wiring Diagram, Type A (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

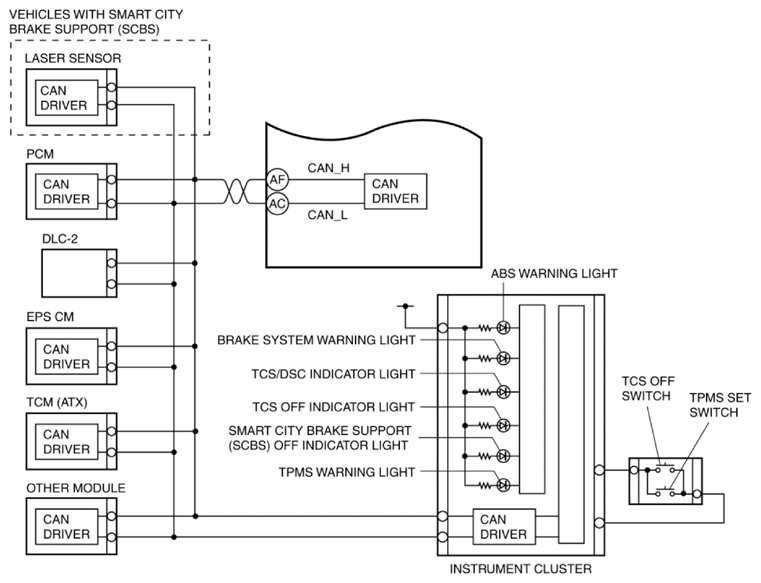

Fig 2: DSC System Wiring Diagram, Type A (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Type B

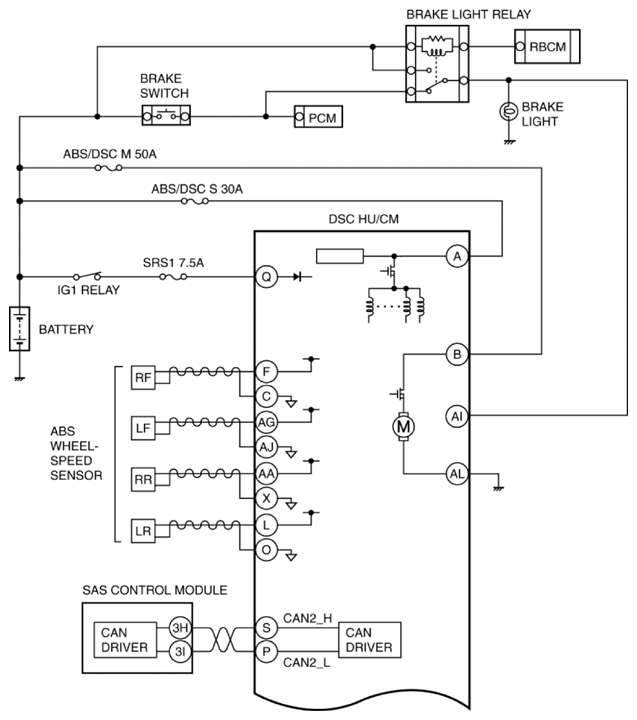

Fig 3: DSC System Wiring Diagram, Type B (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

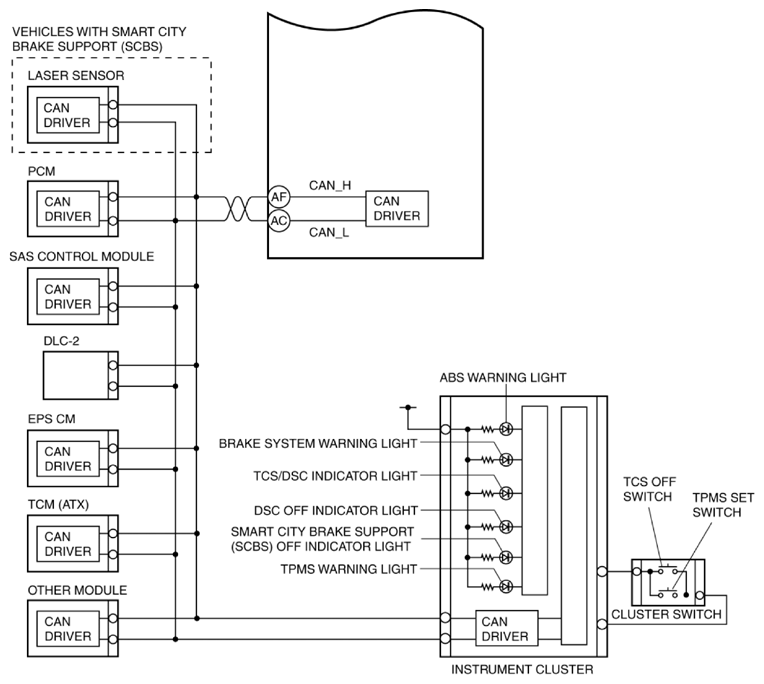

Fig 4: DSC System Wiring Diagram, Type B (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
