Electric variable valve timing control signal

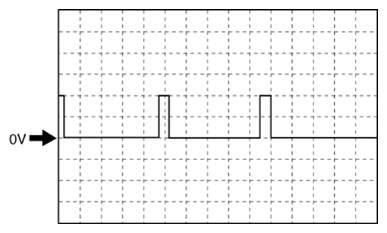

Fig 1: Electric Variable Valve Timing Control Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AZ(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
