Engine oil control signal

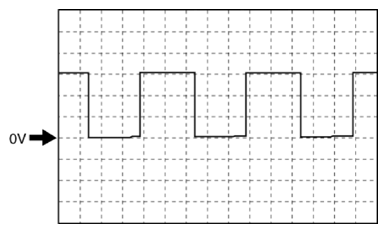

Fig 1: Engine Oil Control Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AS(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
