Rear Buckle Removal/Installation: Notes

Press the release switch, then disconnect the rear center seat belt and rear buckle.

Fig 1: Identifying Release Switch, Rear Center Seat Belt And Rear Buckle (LH)
Courtesy of MAZDA MOTORS CORP.
Fold down the rear seat back.
Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
Remove the bolt.

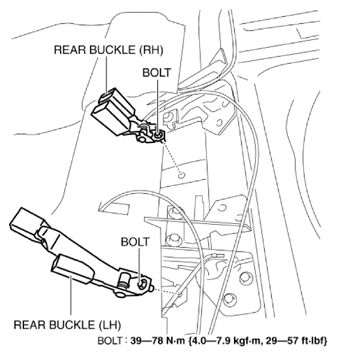

Fig 2: Identifying Rear Buckle LH And RH Or Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the rear buckle (RH) and rear buckle (LH).
Install in the reverse order of removal. (See REAR BUCKLE INSTALLATION NOTE .)
