Transfer Oil Inspection

Park the vehicle on level ground.
Remove the oil level plug with the washer.

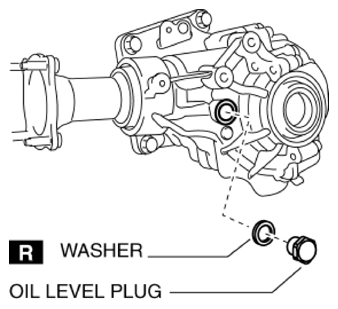

Fig 1: Removing Oil Level Plug With Washer
Courtesy of MAZDA MOTORS CORP.
Checking by hand, verify that the oil is near the brim of the plug hole.
- If the oil level is low, add the specified amount and type of oil through the oil level plug hole.
  Transfer oil type
- MAZDA LONG LIFE HYPOID GEAR OIL SG1
  Transfer oil capacity (approx. quantity)
- 0.45 L {0.48 US qt, 0.40 Imp qt}
Tighten the oil level plug with a new washer.

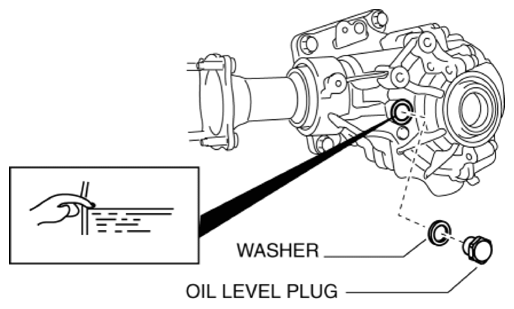

Fig 2: Identifying Oil Level Plug And Washer
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}
