Indicator Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

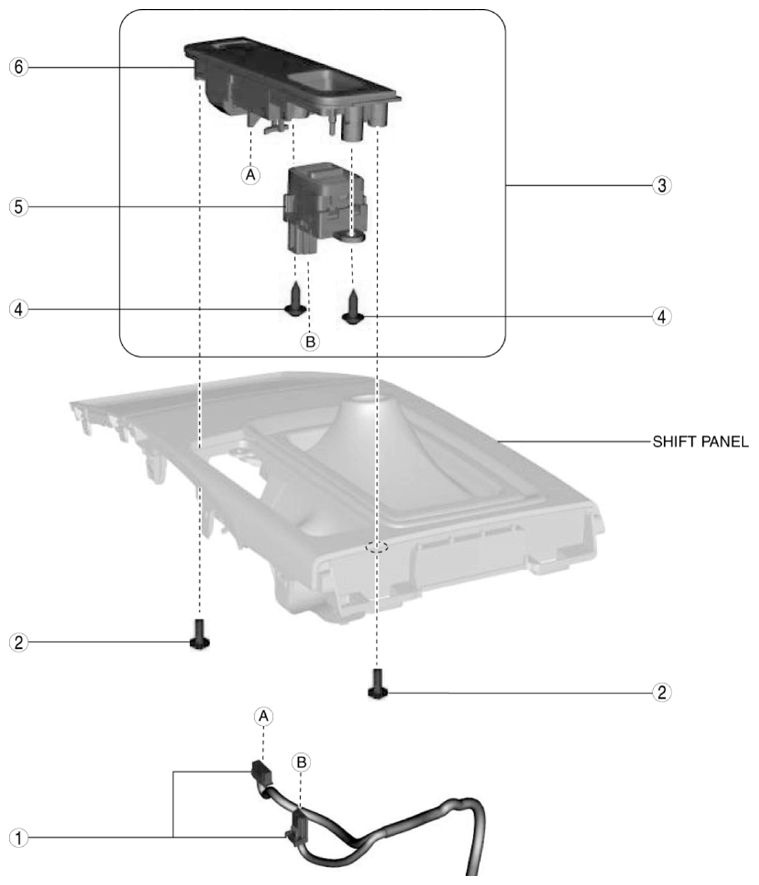

Fig 1: Identifying Indicator Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION
