PCM Assembly Installation Note
PCM Assembly Installation Note
Install the PCM assembly shown in the figure.

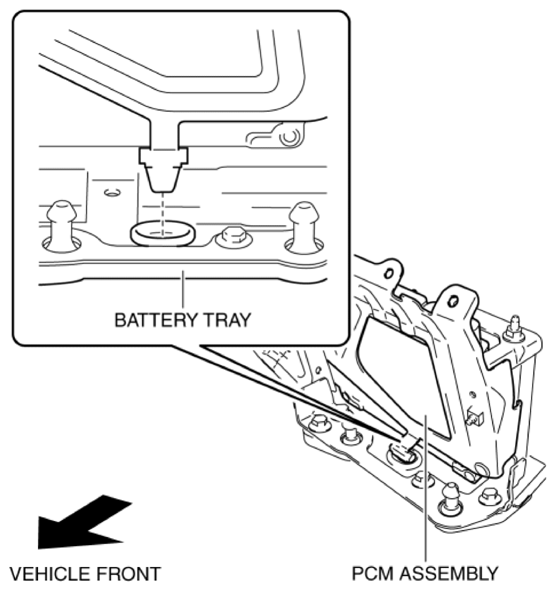

Fig 1: Identifying PCM Assembly And Battery Tray
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
