Troubleshooting Procedure

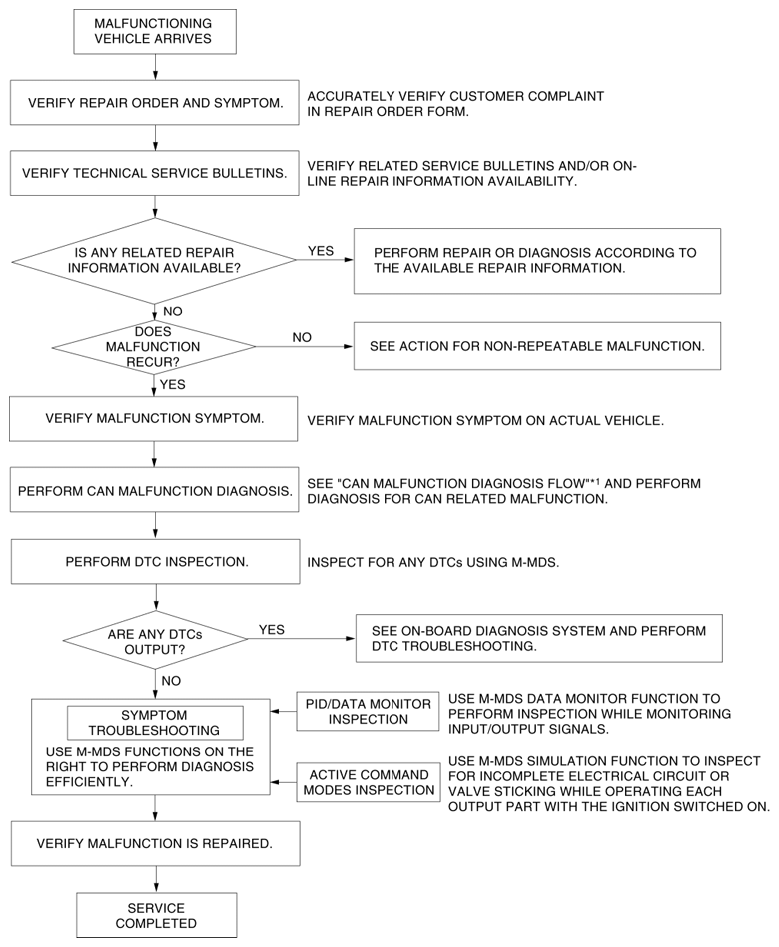

Fig 1: Vehicle Malfunction Troubleshooting Procedure Flowchart

G10949005

Courtesy of MAZDA MOTORS CORP.

^*1 (Refer to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
