Center Display Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

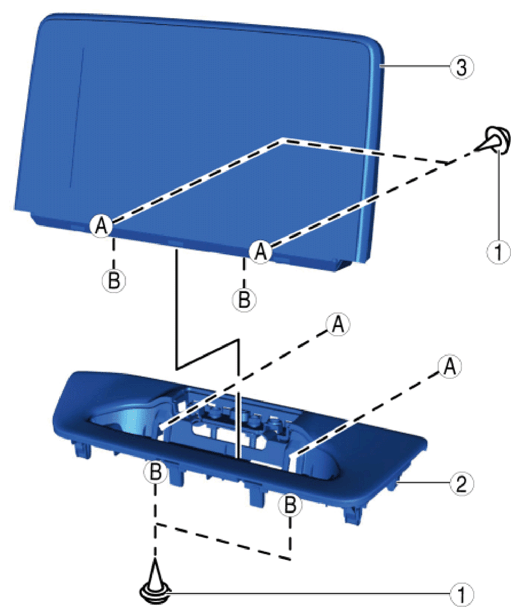

    Fig 1: Identifying Center Display Disassembly Order
    G10950651Courtesy of MAZDA.
    COMPONENT DESCRIPTION

    1 Screw
    2 Bracket
    3 Center display
  2. Assemble in the reverse order of disassembly.
