Condenser Removal/Installation
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
- Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
- Trunk side pocket (Refer to TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
- Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
- Rear scuff plate (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- Third-row seat cushion (Refer to THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
- Third-row seat back component (Refer to THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
- Trunk side trim (Refer to TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- D-pillar trim (Refer to D-PILLAR TRIM REMOVAL/INSTALLATION .)
- Adjust anchor cover on the second-row seat belt (Refer to SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
- Upper anchor installation bolt on the second-row seat belt (Refer to SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
- C-pillar trim (Refer to C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Assist handle (rear) (Refer to ASSIST HANDLE REMOVAL/INSTALLATION .)

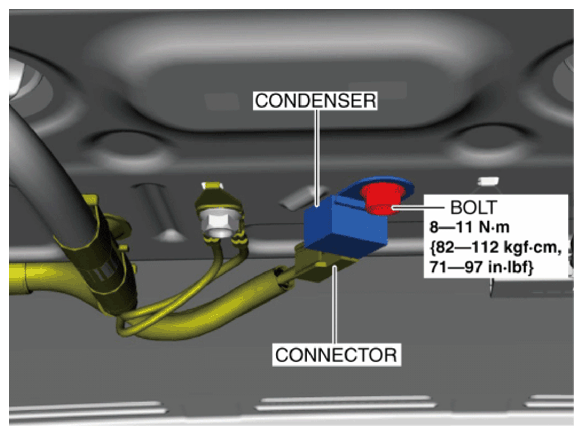

- Partially peel back the headliner.
- Disconnect the connector.
- Remove the bolt.
- Remove the condenser.
- Install in the reverse order of removal.
