Connectivity Master Unit (CMU) Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

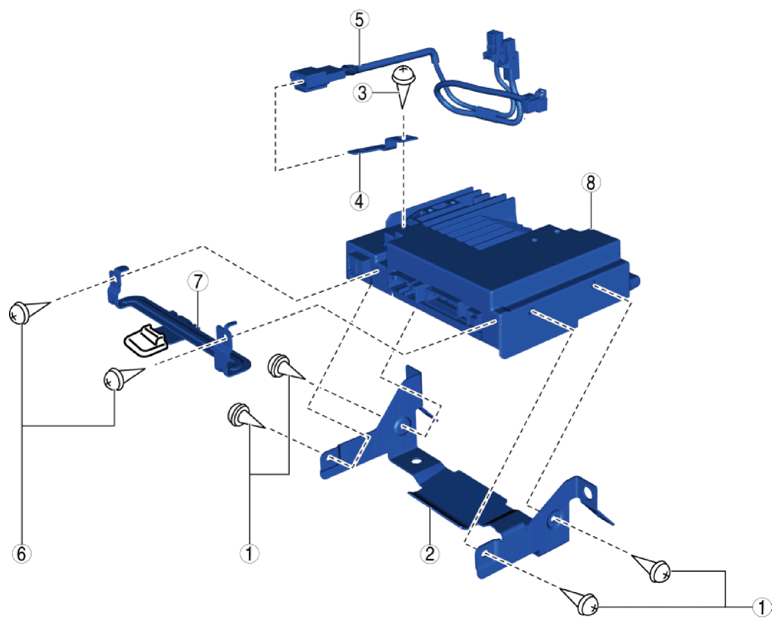

Fig 1: Identifying CMU Disassembly Order

Courtesy of MAZDA.

COMPONENT DESCRIPTION

1	Screw A
2	Bracket A
3	Screw B
4	Bracket B
5	Short-cord (See Short-cord Assembly Note .)
5	Screw C
7	Bracket C
5	Connectivity master unit (CMU)
