On-Board Diagnostic - Position Memory Control Module
›
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram

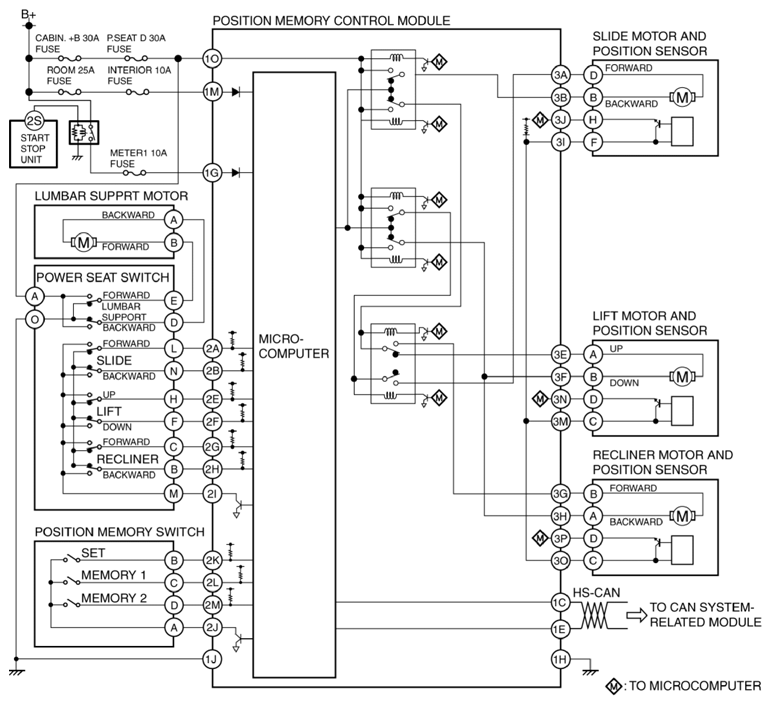

Fig 1: On-Board Diagnostic Wiring Diagram (Position Memory Control Module)
Courtesy of MAZDA
Courtesy of MAZDA
