Washer Fluid-Level Sensor Removal/Installation

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (Refer to FRONT BUMPER REMOVAL .) (Refer to FRONT BUMPER INSTALLATION .)
Disconnect the connector.

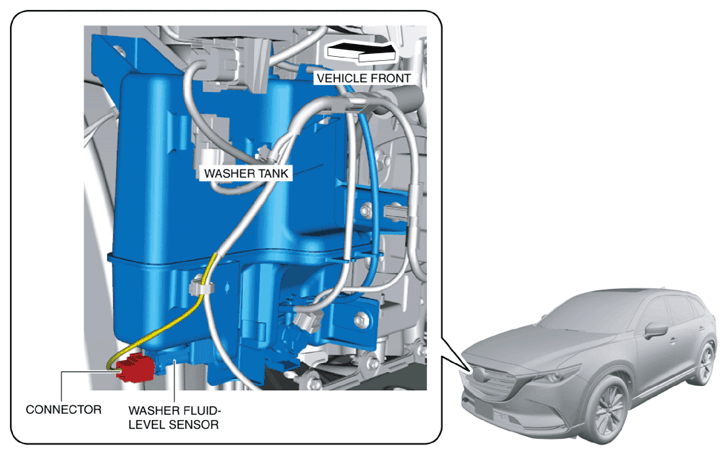

Fig 1: Identifying Washer Tank, Connector And Washer Fluid Level Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.

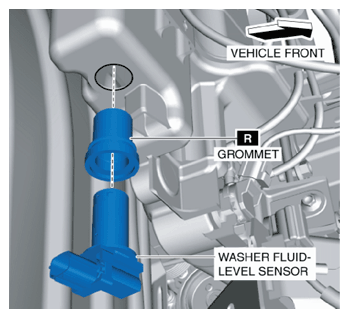

Fig 2: Removing Washer Fluid Level Sensor And Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
