Front Door Latch Switch Inspection

Perform the front door glass preparation. (Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front door trim (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
2. Front door glass (Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
3. Front door module panel (Refer to FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
4. Front door key cylinder (Refer to FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
5. Front inner handle (Refer to INNER HANDLE REMOVAL/INSTALLATION .)
6. Front door latch and lock actuator (Refer to FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Front Door Latch Switch Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.

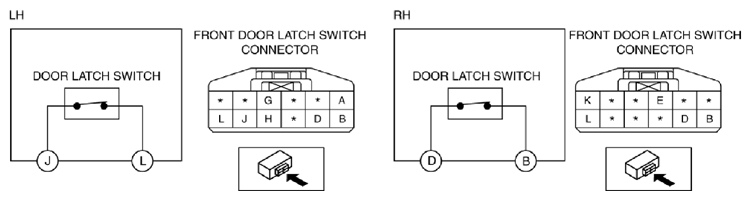

Fig 2: Front Door Latch Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the front door latch and lock actuator. (Refer to FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
NOTE:
- When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

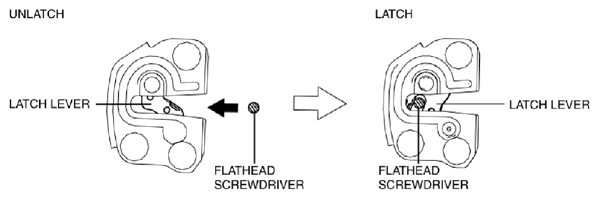

Fig 3: Pressing Latch Lever Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
