Front Scuff Plate Removal/Installation: Installation

  1. Align the inner panel with the front scuff plate pins shown in the figure.

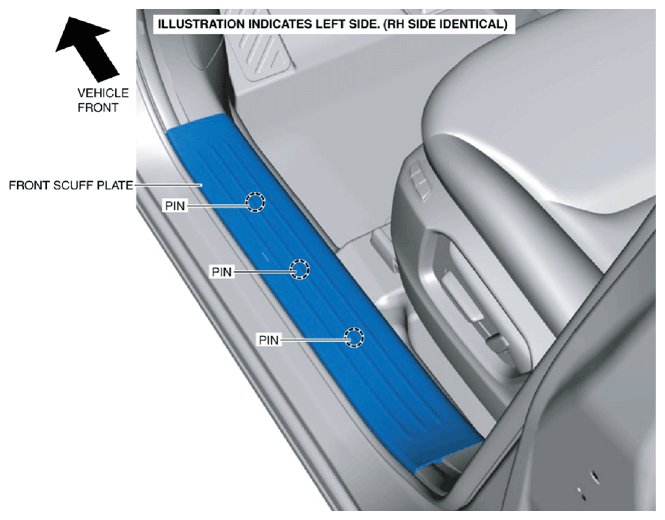

    Fig 1: Aligning Inner Panel With Front Scuff Plate Pins
    G10950282Courtesy of MAZDA MOTORS CORP.
  2. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tab B to the front side trim.

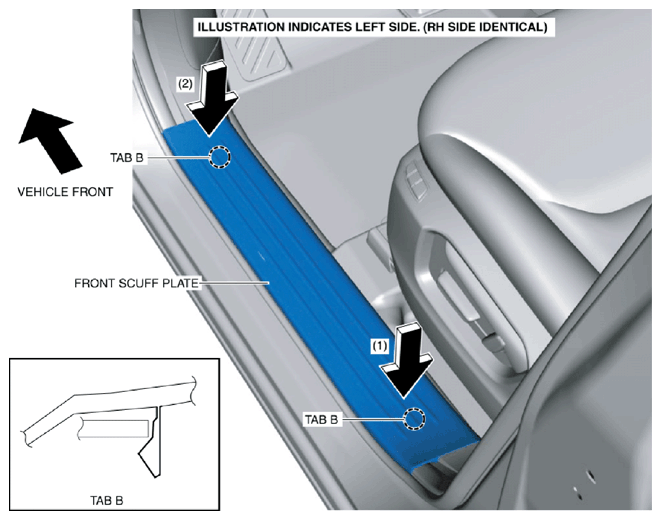

    Fig 2: Pressing Front Scuff Plate
    G10950283Courtesy of MAZDA MOTORS CORP.
  3. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tab B to the B-pillar lower trim.
  4. Press the front scuff plate in the direction of arrows (1),(2) and (3) shown in the figure and install the clips to the inner panel.

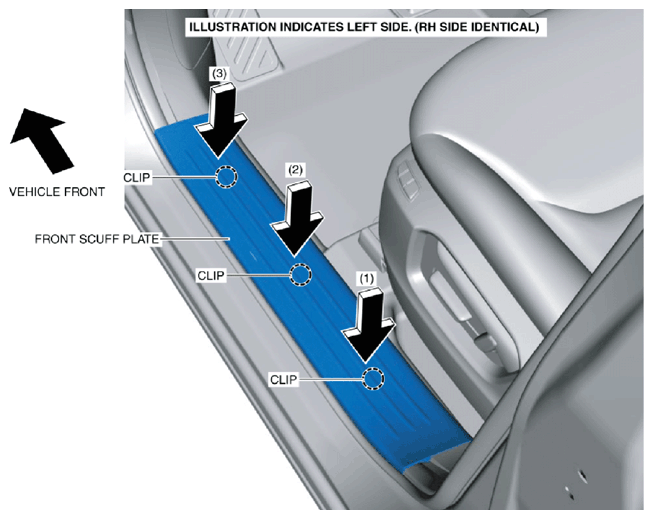

    Fig 3: Pressing Front Scuff Plate
    G10950284Courtesy of MAZDA MOTORS CORP.
  5. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tab A to the B-pillar lower trim.

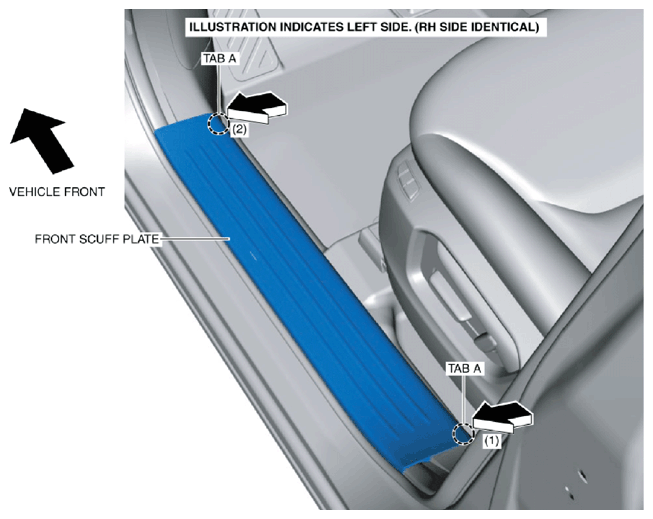

    Fig 4: Pressing Front Scuff Plate
    G10950285Courtesy of MAZDA MOTORS CORP.
  6. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tab A to the front side trim.
