Liftgate Side Trim Removal/Installation: Installation

  1. Align the fastener and the hook of the liftgate side trim, press the liftgate side trim in the direction of the arrow shown in the figure, and install the clips to the liftgate.

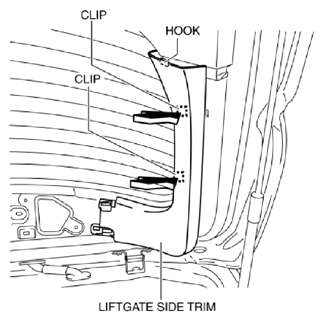

    Fig 1: Pressing Liftgate Side Trim
    G10950322Courtesy of MAZDA MOTORS CORP.
  2. Press the liftgate side trim in the direction of the arrow shown in the figure and install the hook and the tab to the liftgate lower trim.

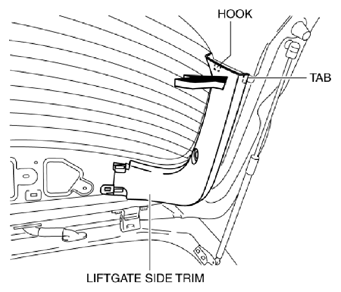

    Fig 2: Installing Hook And Tab To Liftgate Lower Trim
    G10950323Courtesy of MAZDA MOTORS CORP.
  3. Press the liftgate side trim in the direction of the arrow shown in the figure and install the tab to the liftgate lower trim.

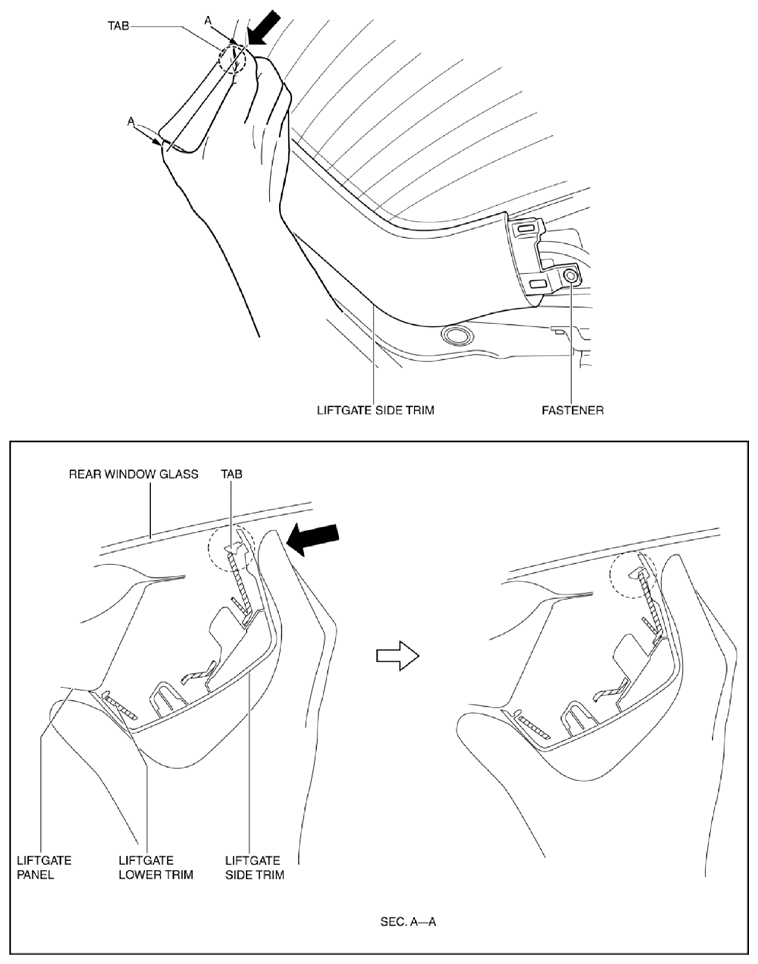

    Fig 3: Pressing Liftgate Side Trim
    G10950324Courtesy of MAZDA MOTORS CORP.
  4. Install the fastener.
  5. Install the liftgate upper trim. (Refer to LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
