Shift Panel Removal/Installation

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the selector lever knob. (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
Hold the shaded area shown in the figure, remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching clips A and clips B.

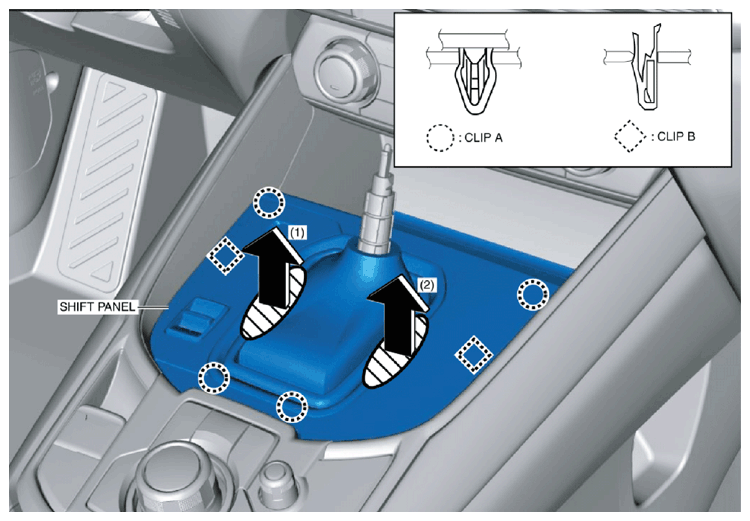

Fig 1: Removing Shift Panel
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

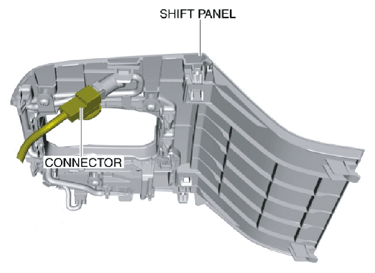

Fig 2: Disconnecting Shift Panel Connector
Courtesy of MAZDA MOTORS CORP.
Remove the shift panel.
Remove the front console box when replacing the shift panel while detaching the clips.

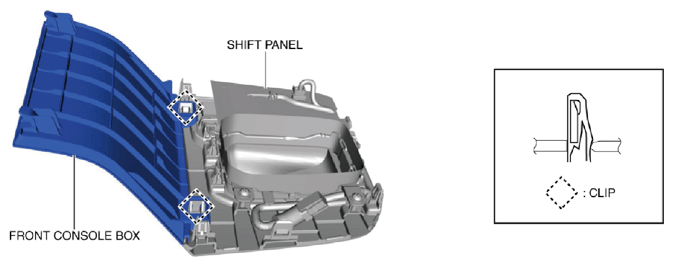

Fig 3: Removing Front Console Box
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
